Plotting coronavirus cases in R

Introduction

We want to show the evolution of the coronavirus cases using R creating static and interactive plots.

Plots

Interactive (linear scale)

Interactive (log scale)

Solution

We use the data repository created by Johns Hopkins University Center for Systems Science and Engineering (JHU CSSE). There are three time-series: confirmed, deaths and recovered cases. First we will prepare the data and then plot the time-series using ggplot2 for the static version and plotly to add interactivity. The data source includes cases across the world, but in our example we will subset the time-series for Germany, France, Italy, Spain, and the United Kingdom.

# Libraries
library(magrittr)
library(lubridate)
library(tidyverse)
library(plotly)
library(scales)

# Importing data
confirmed <- read_csv("https://raw.githubusercontent.com/CSSEGISandData/COVID-19/master/csse_covid_19_data/csse_covid_19_time_series/time_series_19-covid-Confirmed.csv")
deaths <- read_csv("https://raw.githubusercontent.com/CSSEGISandData/COVID-19/master/csse_covid_19_data/csse_covid_19_time_series/time_series_19-covid-Deaths.csv")
recovered <- read_csv("https://raw.githubusercontent.com/CSSEGISandData/COVID-19/master/csse_covid_19_data/csse_covid_19_time_series/time_series_19-covid-Recovered.csv")

# Data preparation
AppendMe <- function(dfNames) {
  do.call(rbind, lapply(dfNames, function(x) {
    cbind(get(x), source = x)
  }))
}
df <- AppendMe(c("confirmed", "deaths", "recovered"))
data <- df %>%
  rename(province = `Province/State`, country = `Country/Region`) %>%
  pivot_longer(
    -c(province, country, Lat, Long, source),
    names_to = "date",
    values_to = "count"
  ) %>%
mutate(date = mdy(date))

# Plot linear scale
p <- data %>%
  filter(country %in% c("Germany", "France", "Italy",  "Spain", "United Kingdom")) %>%
  group_by(country, date, source) %>%
  summarise(n = sum(count)) %>%
  ggplot(aes(date, n, colour = country)) +
  geom_line(linetype = 2) +
  geom_point(size = 1) +
  facet_wrap( ~  source  , scales = "free", nrow = 3) +
  theme_bw()+
  labs(title = "Cumulative Covid-19 cases (linear scale)")+
  ylab("")+
  scale_x_date(date_labels = "%b %d")+
  scale_y_continuous(labels = comma)
p # Static
ggplotly(p) # Interactive

# Plot log scale
p <- data %>%
  filter(country %in% c("Germany", "France", "Italy",  "Spain", "United Kingdom")) %>%
  group_by(country, date, source) %>%
  summarise(n = sum(count)) %>%
  ggplot(aes(date, n, colour = country)) +
  geom_line(linetype = 2) +
  geom_point(size = 1) +
  facet_wrap( ~  source, scales = "free",  nrow = 3) +
  theme_bw()+
  labs(title = "Cumulative Covid-19 cases (log scale)")+
  ylab("")+
  scale_x_date(date_labels = "%b %d")+
  scale_y_log10(breaks = c(1, 10, 100, 10000))
  p
ggplotly(p)

To highlight a series while hovering over it, we use the function highlightfrom the plotly package.

p <- data %>%
  filter(country %in% c("Germany", "France", "Italy",  "Spain", "United Kingdom")) %>%
  group_by(country, date, source) %>%
  summarise(cases = sum(count)) %>%
  highlight_key(~ country ) %>%
  ggplot(aes(date, cases, colour = country)) +
  geom_line(linetype = 2)+
  geom_point(size = 1) +
  facet_wrap(~  source  , scales = "free", nrow = 3)+
  theme_bw()+
  labs(title = "Cumulative Covid-19 cases (linear scale)")+
  ylab("")+
  scale_x_date(date_labels = "%b %d")+
  scale_y_continuous(labels = comma)
ggplotly(p, tooltip = c("country", "date", "cases")) %>%
highlight(on = "plotly_hover")

Plot here. Screenshot below.

References

• csse_covid_19_time_series
• Novel Coronavirus (COVID-19) Cases Data
• Covid-19 Shiny Dashboard

Variaciones diarias de acciones o índices en R

Problema

Queremos crear un mapa de calor en forma de calendario con las variaciones diarias de acciones o índices en R.

Solución

1. Ejecutamos el código de Paul Bleicher para crear la función calendarHeat. Editamos el código fuente para modificar la paleta de colores si fuera necesario.
2. Extraemos los datos usando la función getSymbols.
3. Calculamos las variaciones diarias.
4. Creamos el gráfico de las series temporales.

Un par de ejemplos:

1. Dow Jones, emulando la paleta usada por Mike Bostock here. Los días del índice son verde cuando suben y rosas cuando bajan. Los varaciones están calculadas en porcentaje.

library(tidyverse)
library(tidyquant)
# Dow Jones
symb <- getSymbols(Symbols = "^DJI", QQQ = 'yahoo', auto.assign = FALSE)
n <- gsub("^.*\\.", "", names(symb))
symb <- as.data.frame(symb)
colnames(symb) <- n
symb$date <- rownames(symb)
rownames(symb) <- NULL
df <- symb %>%
  mutate(date = as.Date(date),
         pct_vol = round(100 * (Adjusted / lag(Adjusted) - 1), 2)) %>%
  filter(!is.na(pct_vol), date >= '2016-01-01', date <= '2020-12-31') # o filter(!is.na(pct_vol), date >= '2011-01-01', date <= '2015-12-31')
calendarHeat(
  df$date,
  df$pct_vol,
  varname = "Dow Jones Industrial Average",
  ncolors = 50,
  color = "g2p"
)

2. S&P500, usando otra paleta de azul a rojo. Los varaciones están calculadas en porcentaje.

symb <- getSymbols(Symbols = "^GSPC", QQQ = 'yahoo', auto.assign = FALSE)
n <- gsub("^.*\\.", "", names(symb))
symb <- as.data.frame(symb)
colnames(symb) <- n
symb$date <- rownames(symb)
rownames(symb) <- NULL
df <- symb %>%
  mutate(date = as.Date(date),
         pct_vol = round(100 * (Adjusted / lag(Adjusted) - 1), 2)) %>%
  filter(!is.na(pct_vol), date >= '2016-01-01', date <= '2020-12-31')
calendarHeat(
  df$date,
  df$pct_vol,
  varname = "S&P 500",
  ncolors = 50,
  color = "b2r"
)

Resultados

En los siguentes gráficos, las últimas variaciones diarias desencadenadas por la pandemia del coronavirus (COVID-19) hacen que el resto de días aparezcan muy pálidos en comparación.

Entradas relacionadas

• Mapa de calor en forma de calendario en R
• Generar un mapa de calor por días y horas con ggplot2

Daily changes of stocks in R

Problem

We want to create a calendar heatmap with the daily changes of stocks or indexes in R.

Solution

1. We run the calendarHeat function created by Paul Bleicher to display calendar heatmaps. Editing the palettes in source code if needed.
2. We extract the stock or index data using getSymbols.
3. We calculate the daily changes.
4. We plot the time series.

Let's see a couple of examples:

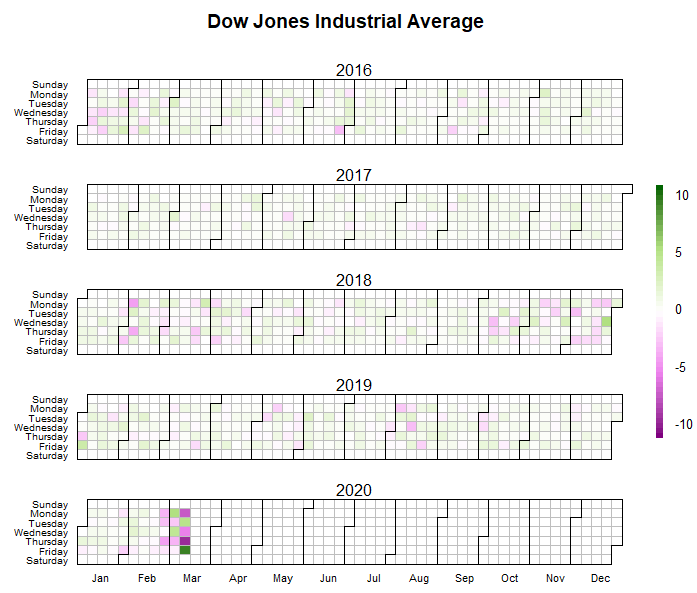

1. Dow Jones, emulating the palette used by Mike Bostock here. Days the index went up are green, and down are pink. The changes are in percentages.

library(tidyverse)
library(tidyquant)
# Dow Jones
symb <- getSymbols(Symbols = "^DJI", QQQ = 'yahoo', auto.assign = FALSE)
n <- gsub("^.*\\.", "", names(symb))
symb <- as.data.frame(symb)
colnames(symb) <- n
symb$date <- rownames(symb)
rownames(symb) <- NULL
df <- symb %>%
  mutate(date = as.Date(date),
         pct_vol = round(100 * (Adjusted / lag(Adjusted) - 1), 2)) %>%

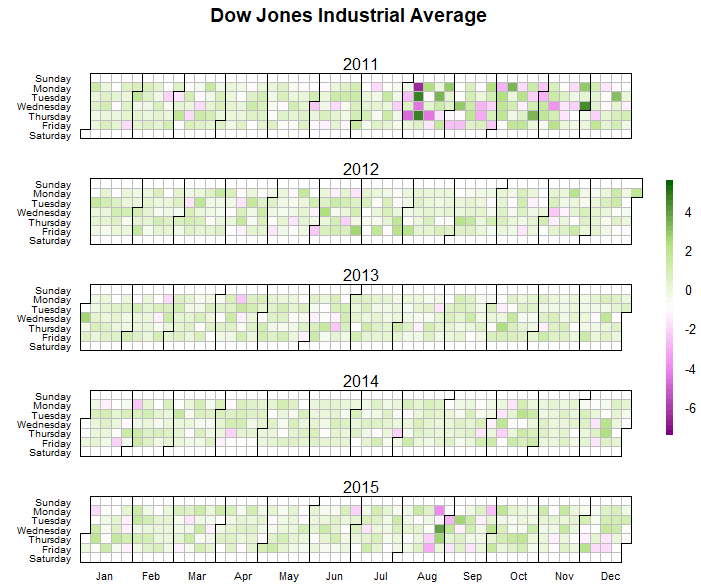

  filter(!is.na(pct_vol), date >= '2016-01-01', date <= '2020-12-31') # or filter(!is.na(pct_vol), date >= '2011-01-01', date <= '2015-12-31')
calendarHeat(
  df$date,
  df$pct_vol,
  varname = "Dow Jones Industrial Average",
  ncolors = 50,
  color = "g2p"
)

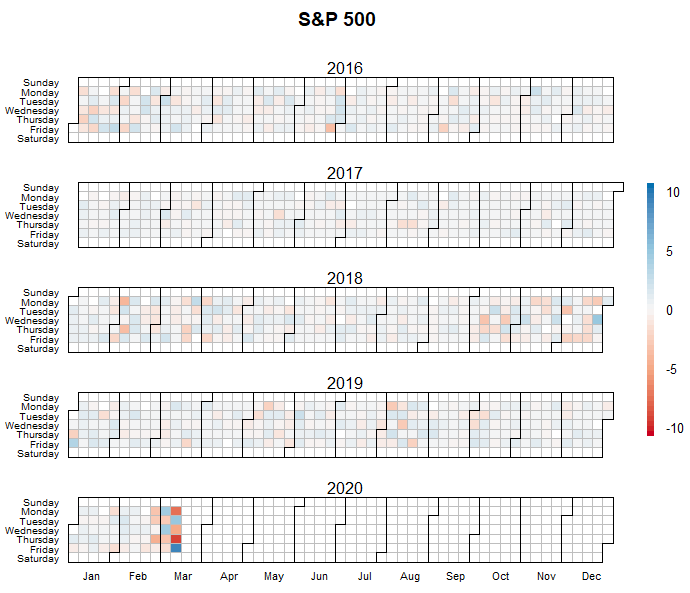

2. S&P500, using another palette from blue to red. The changes are in percentages.

symb <- getSymbols(Symbols = "^GSPC", QQQ = 'yahoo', auto.assign = FALSE)
n <- gsub("^.*\\.", "", names(symb))
symb <- as.data.frame(symb)
colnames(symb) <- n
symb$date <- rownames(symb)
rownames(symb) <- NULL
df <- symb %>%
  mutate(date = as.Date(date),
         pct_vol = round(100 * (Adjusted / lag(Adjusted) - 1), 2)) %>%
  filter(!is.na(pct_vol), date >= '2016-01-01', date <= '2020-12-31')
calendarHeat(
  df$date,
  df$pct_vol,
  varname = "S&P 500",
  ncolors = 50,
  color = "b2r"
)

Results

In the next two plots, because of the large daily variations in the last days due to the coronavirus pandemic (COVID-19), the rest of the days are very pale in comparison.

Related posts

• How to create a calendar heatmap in R
• Calendar heatmap by hour and weekday in ggplot2

How to create a calendar heatmap in R

Problem

We want to create a calendar heatmap for a time series in R.

Solution

First we run the calendarHeat function created by Paul Bleicher to display calendar heatmaps. Secondly we create some random time series data. Finally we plot the time series in two palettes.

library(tidyverse)
# Random data
set.seed(2015)
df <-
  data.frame(dates = sample(seq(
    as.Date('2018-01-01'),
    as.Date('2020-12-31'),
    by = "day"
  ), 1000))
df <- df %>% mutate(sessions = floor(runif(nrow(.), 1, 101)) )
# Two calendar with different palettes

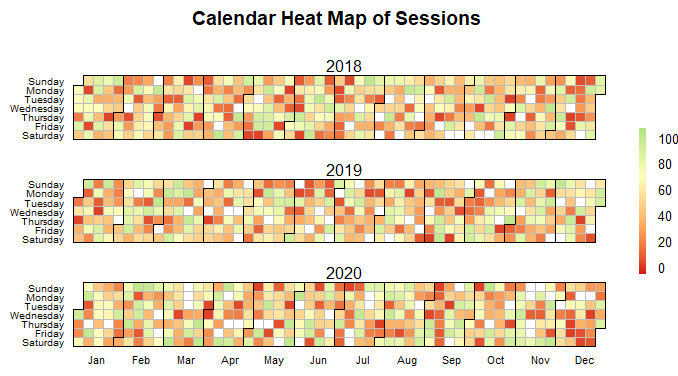

calendarHeat(df$dates, df$sessions, varname = "Sessions")

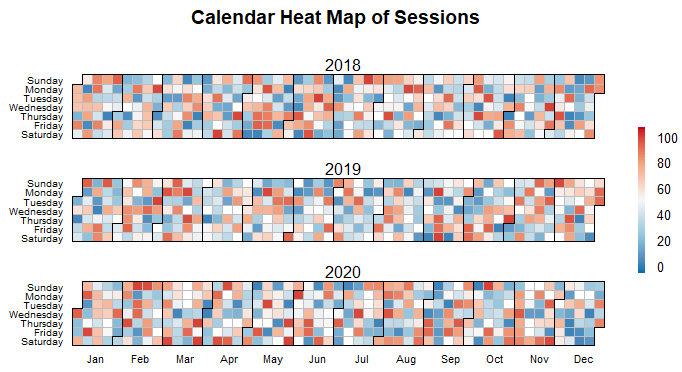

calendarHeat(df$dates, df$sessions, varname = "Sessions", ncolors = 99, color = "r2b" )

Results

Related posts

• Calendar heatmap by hour and weekday in ggplot2

Calendar heatmap by hour and weekday in ggplot2

Problem

We want to create a calendar heatmap using ggplot2.

Solution

In our example we generate random dates, and then group the results by hour of the day and day of the week.

library(tidyverse)
library(lubridate)
# Data
set.seed(2020)
df <-
  data.frame(dates = sample(seq(
    as.POSIXct('2019/01/01', tz = "CET"),
    as.POSIXct('2019/12/31', tz = "CET"),
    by = "sec"
  ), 1000))

# Data manipulation
df %>%
  mutate(days = factor(weekdays(dates, abbreviate = TRUE),
                       levels = rev(
                         c('Sun', 'Mon', 'Tue', 'Wed', 'Thu', 'Fri', 'Sat')
                       ))) %>%
  group_by(hours= hour(dates), days) %>%
  summarise(sessions = n()) %>%

# Plot
ggplot(aes(hours, days)) +
  geom_tile(aes(fill = sessions), colour = "white") +
  scale_fill_distiller(palette = "YlGnBu", direction = 1) +
  scale_x_continuous(breaks = 0:23) +
  theme_minimal() +
  theme(
    legend.position = "bottom",
    legend.key.width = unit(2, "cm"),
    panel.grid = element_blank()
  ) +
  coord_equal()

Results

Related posts

• How to create a calendar heatmap in R

References

• stackoverflow

Show the first and last n lines of a data frame in R

Problem

We want to show the first and last n lines of a data frame. The equivalent of using the head and tail functions at the same time.

Solution

We can use the function headTail from the psych package.

1. Defatult options

By default headTail returns the top 4 and bottom 4 lines separated with dots (ellipsis).

library(psych)
headTail(ToothGrowth)

     len supp dose
1    4.2   VC  0.5
2   11.5   VC  0.5
3    7.3   VC  0.5
4    5.8   VC  0.5
...  ...   ...
57  26.4   OJ    2
58  27.3   OJ    2
59  29.4   OJ    2
60    23   OJ    2

2. Arguments

We can control tne number of lines to show at the top and the bottom, the ellipsis (how top and bottom are separared), number of columns to show and round the number of digits. Some examples:

# The first and last 2 lines without separation
headTail(ToothGrowth, top = 2, bottom = 2, ellipsis = FALSE)

    len supp dose
1   4.2   VC  0.5
2  11.5   VC  0.5
59 29.4   OJ  2.0
60 23.0   OJ  2.0

# The first and last 3, from column 4 to 5 with no decimals.
headTail(iris, top = 3, bottom = 3, digits = 0 , from = 4, to = 5)

   Petal.Width   Species
1             0    setosa
2             0    setosa
3             0    setosa
...         ...
148           2 virginica
149           2 virginica
150           2 virginica

Related posts

• Descriptive statistics in R
• Descriptive statistics by group in R

References

• Reference manual: psych
• stackoverflow
